Broiler Chicken Cage
Broiler Chicken Cage

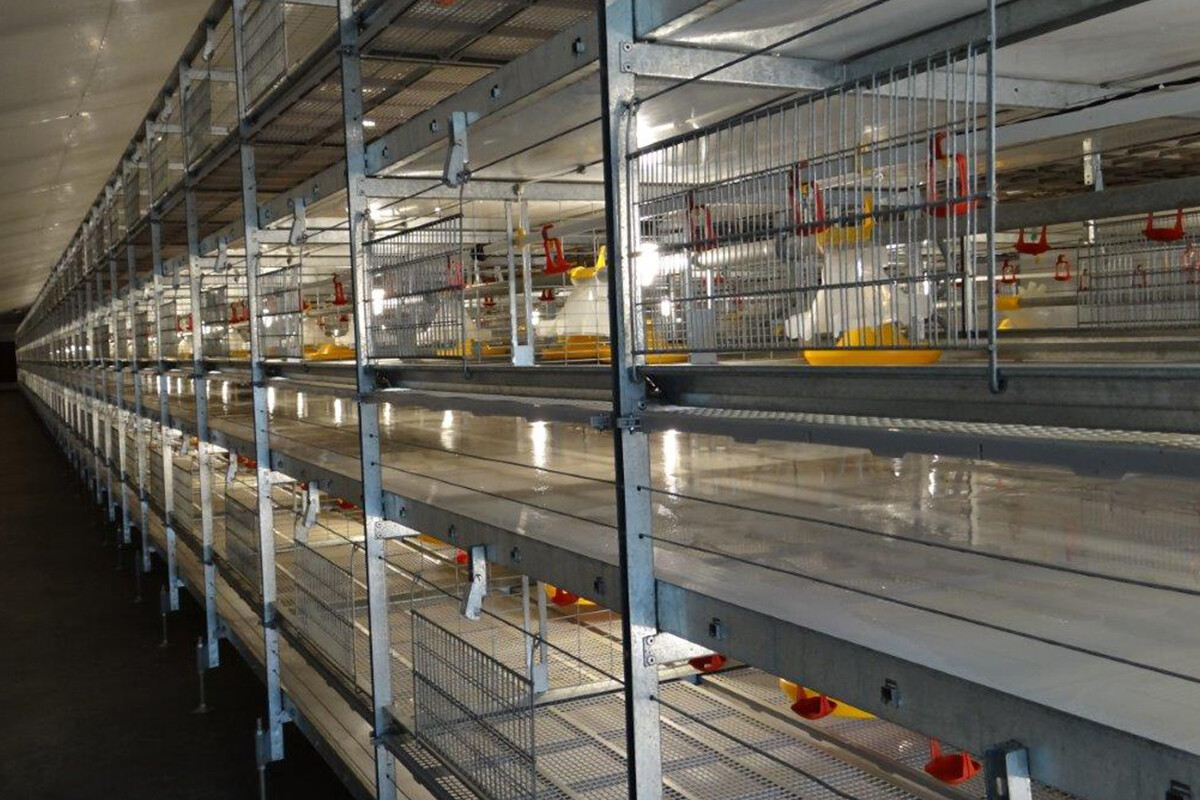

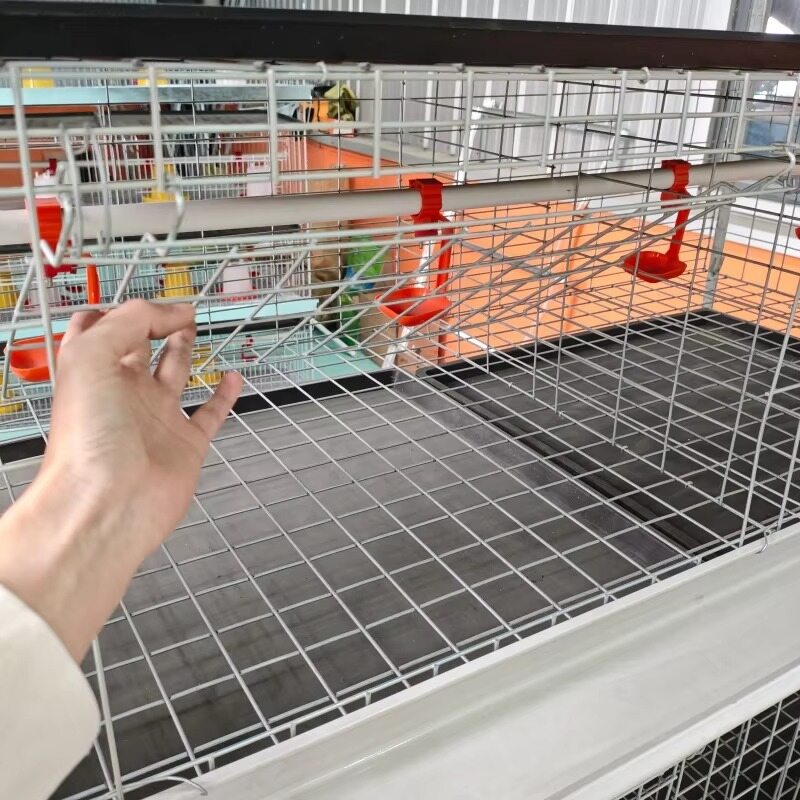

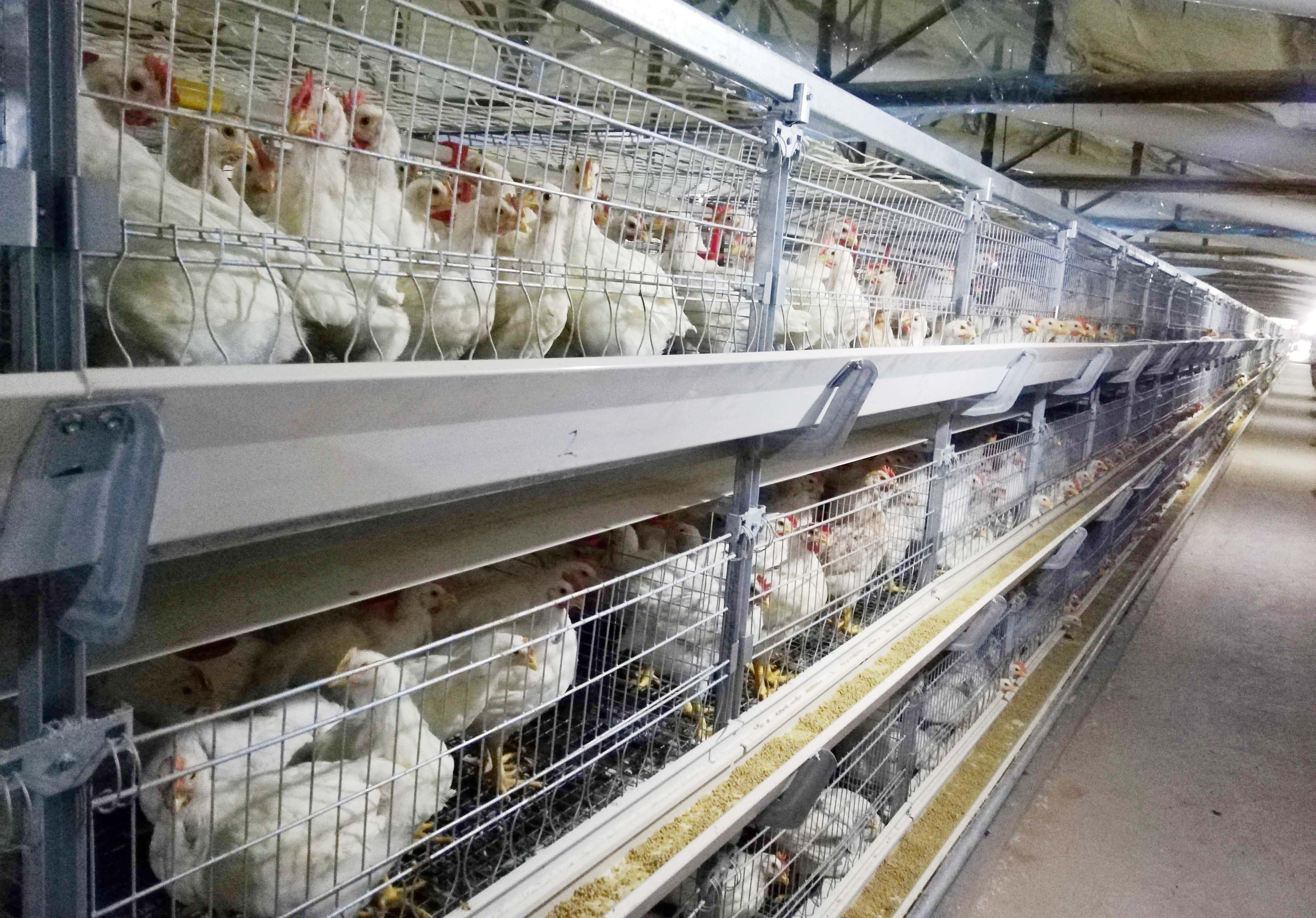

The Broiler Chicken Cage is a specialized poultry housing system designed specifically for meat chicken (broiler) production. Unlike layer cages, broiler cages feature larger compartment sizes, lower tier counts (typically 2-4 tiers), and enhanced feeding systems to support rapid weight gain. The design prioritizes bird comfort, adequate space for movement, and efficient feed conversion. With automatic feeding, drinking, and manure removal systems, broiler cages significantly improve production efficiency compared to floor raising.
Inquiry NowProduct Features
Larger compartment size for broiler comfort and growth
2-4 tier design optimized for meat chicken weight
Automatic pan feeding system for uniform feed distribution
High-capacity nipple drinking system
Belt or scraper manure removal for hygiene
Anti-slip bottom mesh to prevent foot injuries
Hot-dip galvanized frame for durability
Improved feed conversion ratio vs. floor raising
Higher stocking density than floor systems
Easy bird catching and loading for transport
Product Advantages
1. Low investment cost: This is its core advantage. Without the need for expensive automatic feeding lines, manure removal belts, and control systems, the initial investment is far lower than that of automated cage systems.
2. Improved space utilization: The multi-layer, overlapping design allows more broilers to be raised in the same floor space compared to floor-raising systems.
3. Easier management and observation: The birds are confined in layers, allowing keepers to monitor their mental state, feeding habits, and feces at all times, allowing them to promptly identify and isolate sick and weak birds.
4. Facilitated disease control: The birds are shielded from direct contact with feces, effectively reducing the incidence of intestinal diseases such as coccidiosis.
5. Low dependence on electricity: The lack of automated equipment allows for normal operation in areas with unstable power supply.
Technical Specifications
| Type | Broiler Cage (H-type) |
| Tiers | 3 or 4 tiers |
| Cage Size(3 tiers 2 doors) | 1.5m (L)*0.9m (D/w)*1.55m (H) |
| Cage Size(4 tiers 2 doors) | 1.5m (L)*0.9m (D/w)*2.05m (H) |
| Wire Material | Low carbon steel wire, Q235 |
| Wire Diameter | 2.8 mm |
| Surface Treatment | Hot-dip galvanized |
| Package | Full container loading: cage and cage frame are no package, some fittings are in plastic bags and carton box Less container loading: packed in wooden box and pallet |
