Chicken Feeding Pan System for Broilers

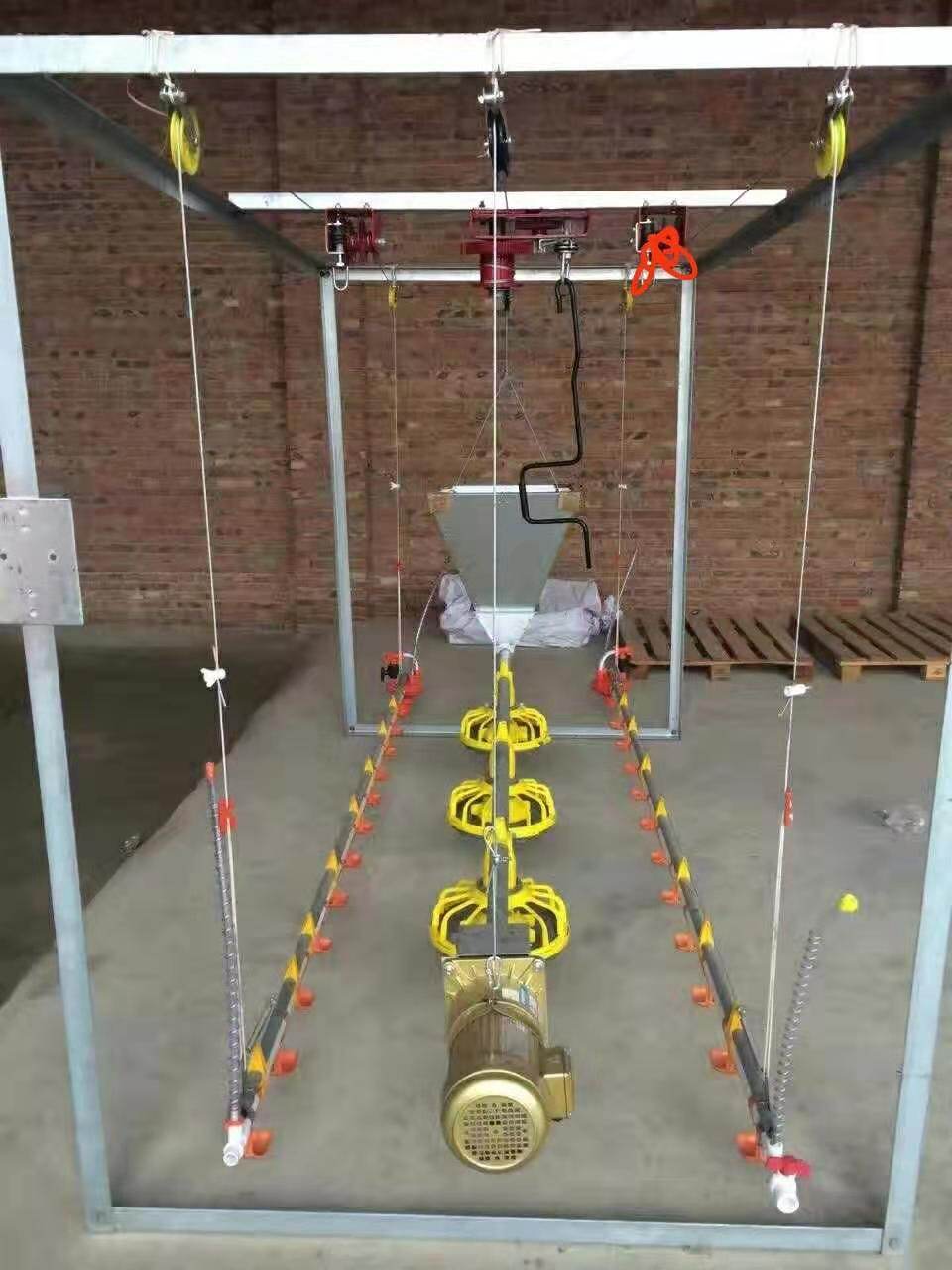

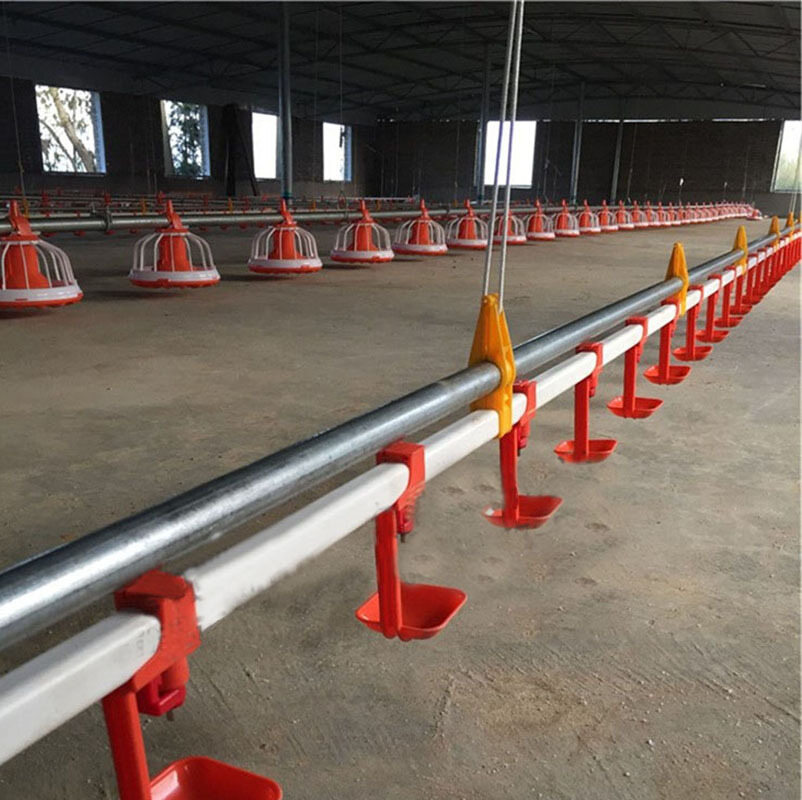

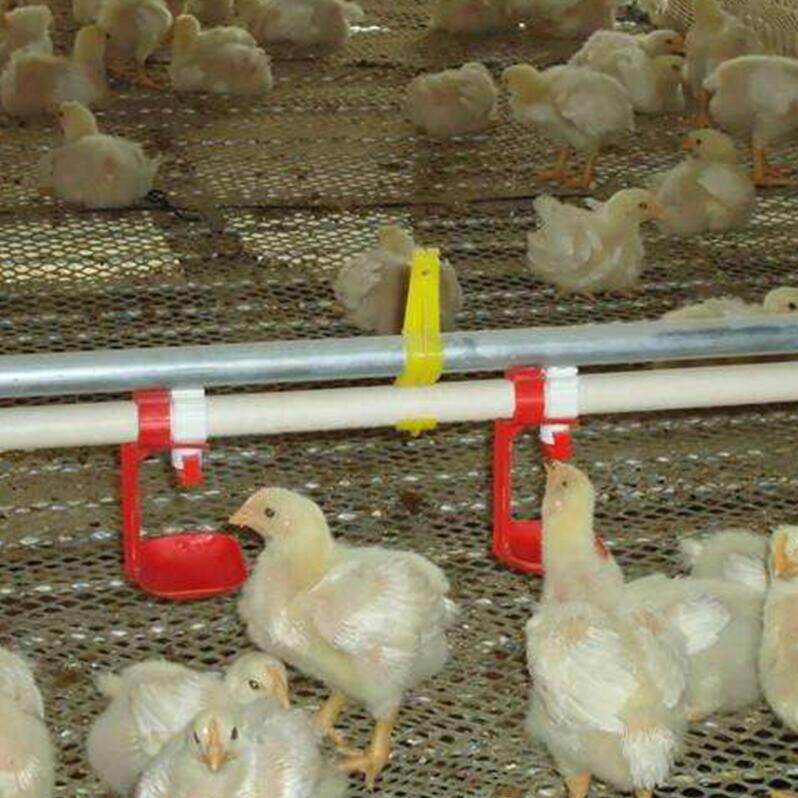

The Chicken Feeding Pan System for Broilers is a complete automatic feeding and drinking solution designed for floor broiler farming. The system includes pan feeders with pure engineering plastic construction, nipple drinker lines with stainless steel valves, and a complete silo-to-pan delivery system. With adjustable hanging height, anti-perching devices, and optimized feed distribution, this system significantly reduces breeding costs and labor requirements while ensuring uniform feed and water access for all birds.
Inquiry NowProduct Features
Pure Engineering Plastic Feed Pans: Durable, easy-to-clean material that resists corrosion and ensures long service life.
Adjustable Hanging System: Winch-operated suspension allows easy height adjustment as birds grow.
Anti-Perching Device: Prevents birds from staying on the feeding line too long, reducing feed contamination.
High-Capacity Delivery: Main line feeds up to 1400kg/h, delivery pipe up to 450kg/h for efficient distribution.
Stainless Steel Nipple Valves: Inside valve made of stainless steel for durability and clean water delivery.
Complete System Integration: Includes silo, main feed line, delivery pipe, feed pans, waterline, and all accessories.
Flexible Configuration: 3-4 pans per 3 meters, suitable for various house sizes and bird densities.
Cost-Effective Operation: Reduces labor costs and feed waste while improving feed conversion ratio.
Product Advantages
Floor broiler farming operations
Commercial broiler production (5,000-50,000 birds)
Integrated poultry farms with silo storage
Farms seeking automated feeding solutions
New broiler house construction projects
Farm modernization and equipment upgrades
Technical Specifications
| Product Name | Chicken Feeding Pan System for Broilers |
| Pan Material | Pure engineering plastic (PP) |
| Pan Distance | 3-4 pans/3m or 4 pans/3m |
| Space Between Two Grills | 75-100mm |
| Transmission Speed | 450kg/h |
| Raising Ability (Feed Pan) | 45-55 birds/PC |
| Main Feed Line Pipe Diameter | 75mm (PVC material) |
| Main Feed Line Auger Capacity | 1400kg/h (maximum) |
| V-Shape Bin Volume | 100L (Hot-DIP galvanized sheet) |
| Motor Power | 0.75Kw/1.1Kw/1.5Kw (Taiwan brand) |
| Motor Voltage | 380V three-phase / 220V single-phase / others |
| Delivery Pipe Diameter | 45mm (Hot-DIP galvanized steel) |
| Delivery Pipe Auger | South Africa origin, 450kg/h maximum |
| Nipple Distance | 16 nipples/4m or 12 nipples/3m |
| Raising Ability (Nipple) | 8-12 birds/PC |
| Nipple Material | Inside valve: stainless steel; Shell: plastic |
| Drip Cup Material | Pure engineering plastic |
| Waterline Components | Filter, pressure regulating valve, water meter, medicator (doser) |
| Suspension System | Winch-operated for both feeding and drinking lines |
| Feature | Save breeding cost, reduce labor, improve feed conversion |
