Automatic Chicken Cage

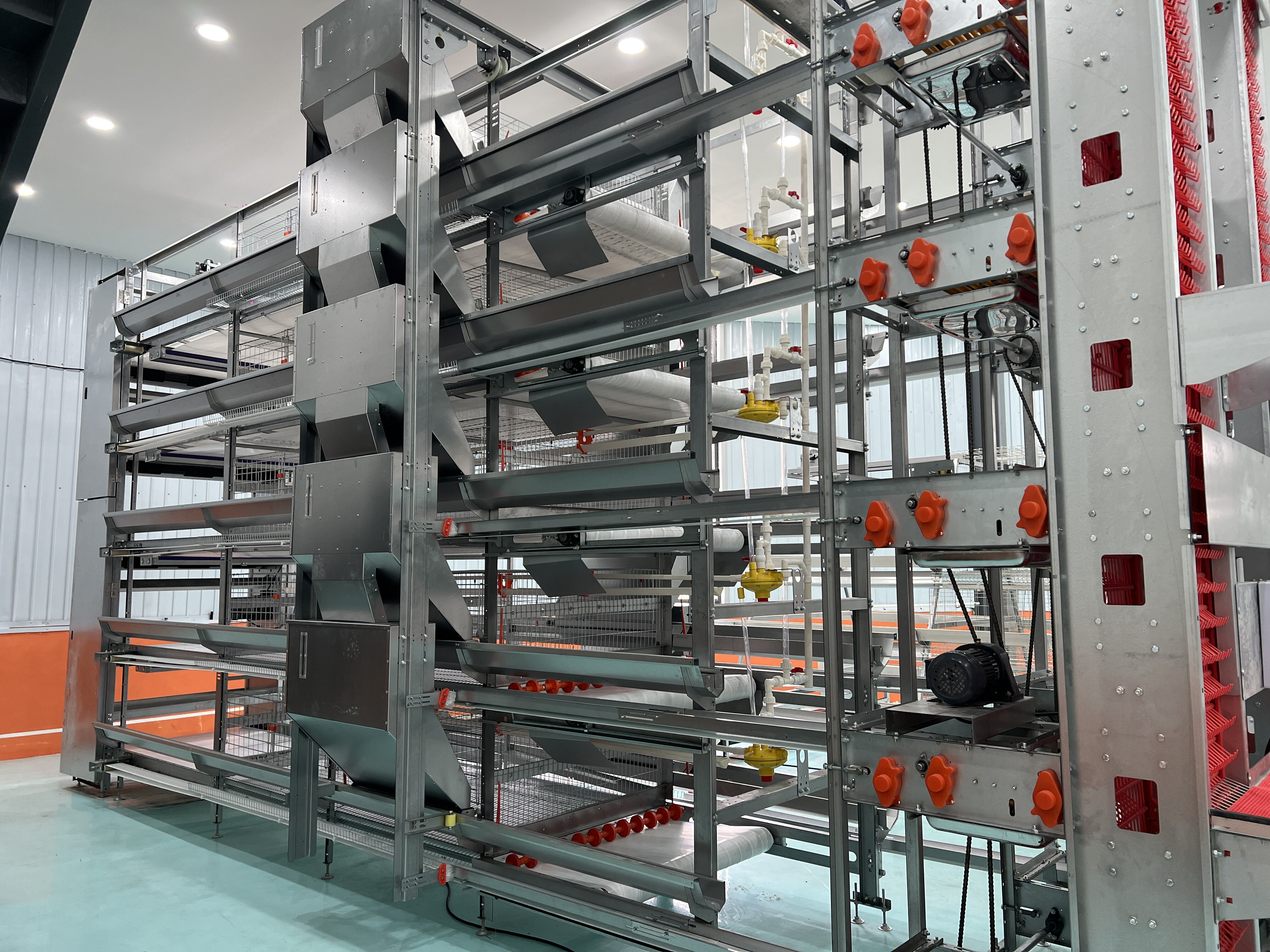

H Type Automatic Chicken Layer Cage
The fully automatic laying hen cage integrates a laying hen breeding system with fully automated functions of feeding, drinking water, manure cleaning, egg collection, ventilation and lighting, realizing a highly automated and intelligent egg production process from the time the chicks enter the cage to the time they are eliminated.
Inquiry NowProduct Features
High-density H-frame structure with 4-8 tiers
Full automation: feeding, drinking, egg collection, manure removal
Intelligent environmental control system integration
Maximizes land use — up to 3x more birds per sqm vs A-type
Superior biosecurity with enclosed house design
Central control panel for farm management
Hot-dip galvanized frame with 20+ year service life
Low labor requirement — one worker can manage 100,000+ birds
Uniform feed distribution and egg collection
Suitable for large-scale commercial operations
Product Advantages
1.Automatic Poultry Feeding System: Equipped with scientific anti-waste feed troughs and automatic feeding hopper trolleys to ensure uniform feed distribution. The specialized curved-edge trough design effectively prevents hens from scratching or spilling feed, saving up to 10%-15% on feed costs.

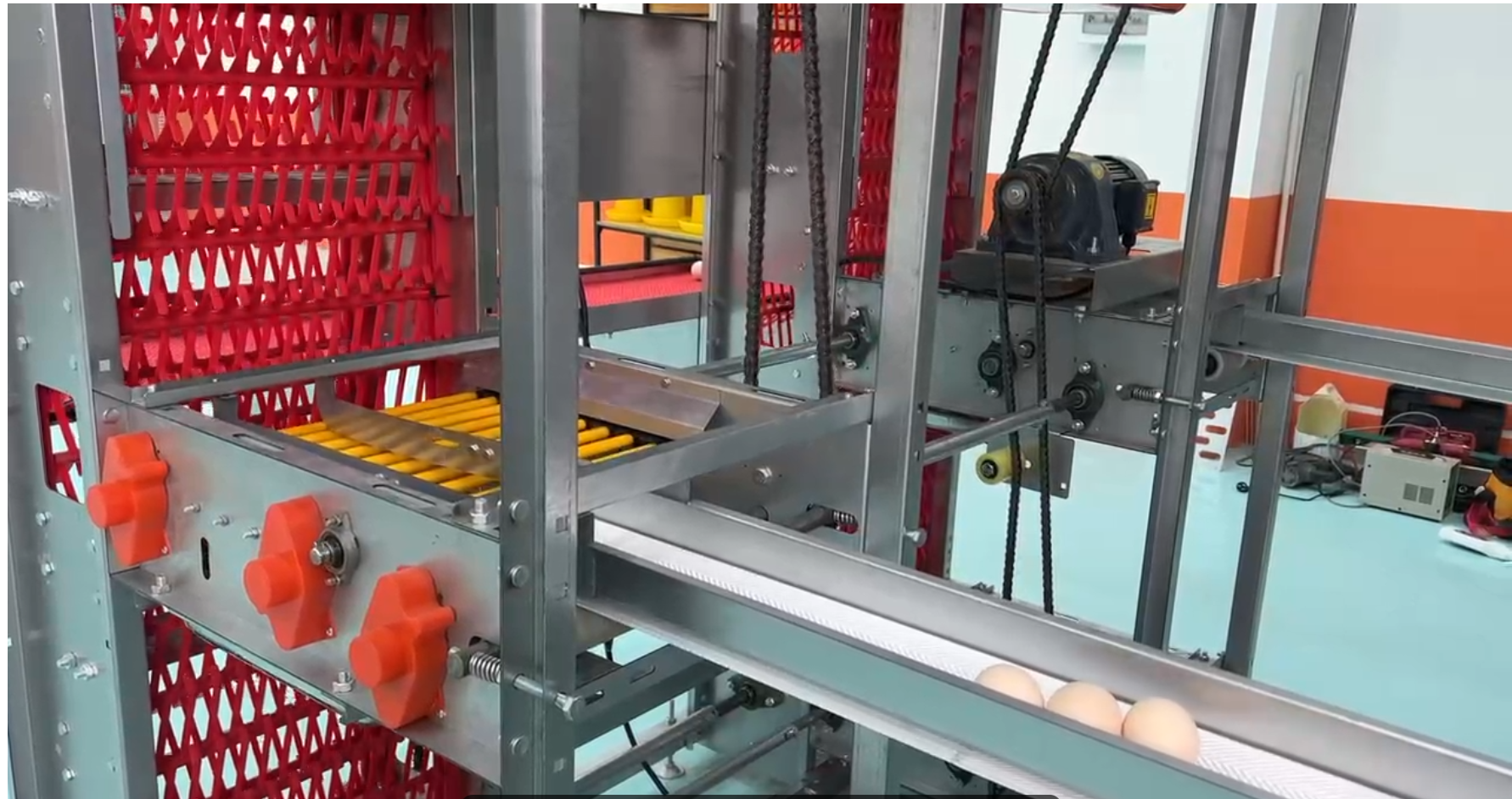

2.Automatic Egg Collection System: Centralized egg lifts and conveyor belts that dramatically lower the egg breakage rate to less than 1%.
3.Poultry Manure Cleaning System: Heavy-duty PP manure conveyor belts to keep the chicken house dry, reducing disease risks and ammonia odors.
4.Climate & Ventilation Control System: High-efficiency exhaust fans, cooling pads, and environmental controllers tailored for hot climates (like Africa) and cold regions.
5.Reduced Impact: Centralized manure processing cuts pollution; superior insulation lowers energy use.
Technical Specifications
| name: | H Type Automatic Chicken Layer Cage |
| Tiers | normal 3/4 Tiers or higher 5-12 Tiers Customized |
| System: | automatic feeding, drinking, lighting, manure removal and egg collection system along with smart environment control |
| Single Cage Size | hot dip galvanized |
| Feeding: | automatic feed supply to each feed trough by feed machine |
| Drinking: | automatic nipple drinking line system |
| Manure Remove: | automatic manure belt remove |
| Egg Collection: | automatic egg belt collection |
| Smart Environment Control: | automatic ventilation, cooling, heating, alarm, fan control and lighting etc. |
| Farming Bird per Shed: | More Than 30000 Heads |
| Feed-Egg-Ratio: | 2:1 |
