Stainless Steel Rope Mesh

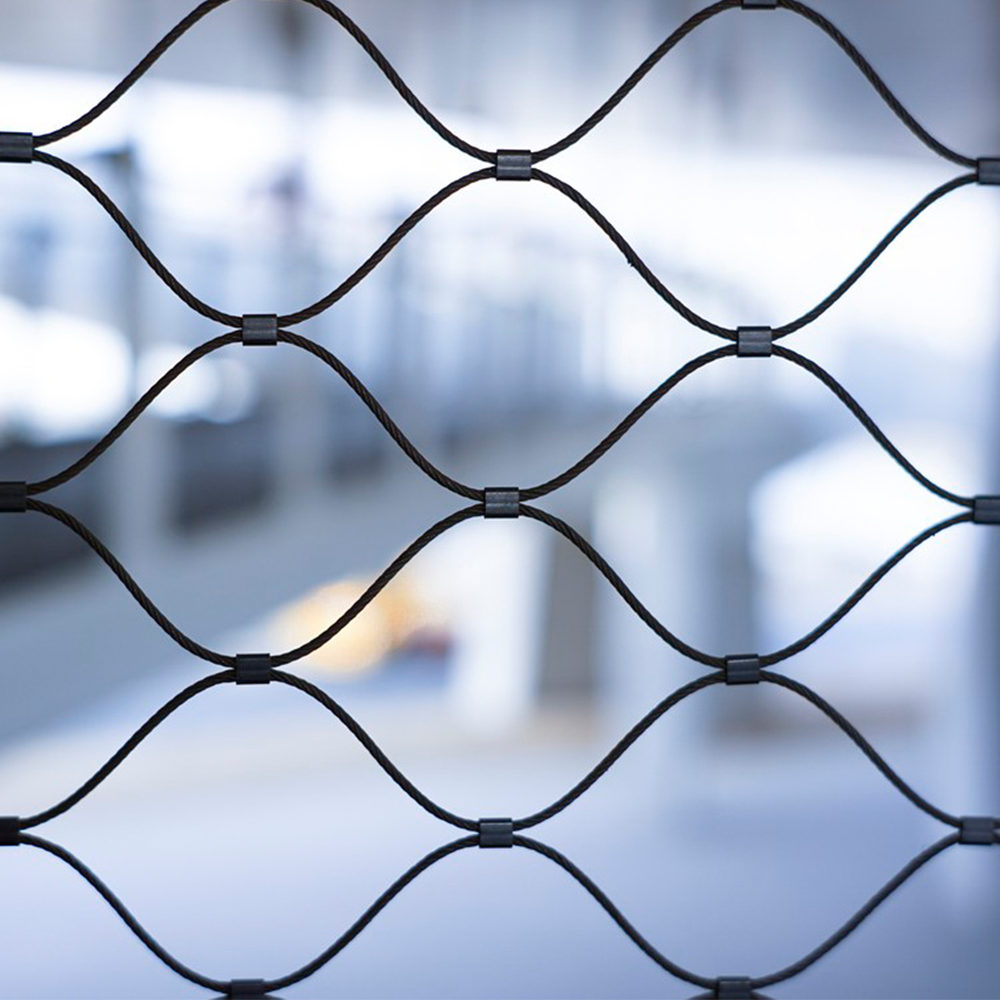

Stainless steel rope mesh is a flexible, durable wire mesh made from interwoven stainless steel cables. The mesh is formed by weaving or ferrule-locking individual wire ropes into a grid pattern, creating a strong yet transparent barrier. Its combination of high strength, corrosion resistance, and aesthetic transparency makes it ideal for architectural applications, animal enclosures, safety netting, and decorative installations where both security and visual openness are required.
Inquiry NowProduct Features
High tensile strength with flexible, drapable construction
Excellent corrosion resistance — suitable for coastal and outdoor use
Transparent appearance maintains visual openness and light transmission
Long service life with minimal maintenance requirements
Custom mesh sizes and cable diameters available
Fire-resistant and non-combustible material
Easy to cut and shape for custom installations
Environmentally friendly and fully recyclable
Applications
Architectural building facades and cladding

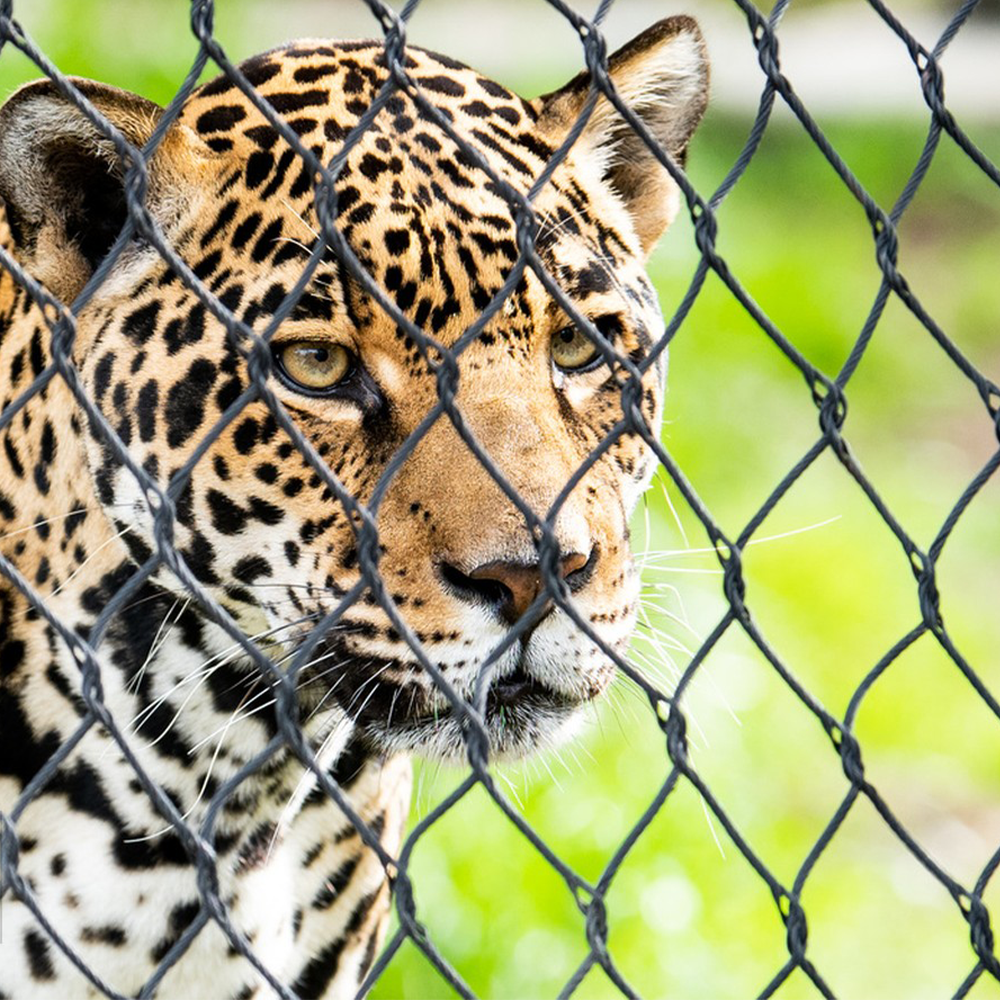

Zoo and aviary animal enclosures

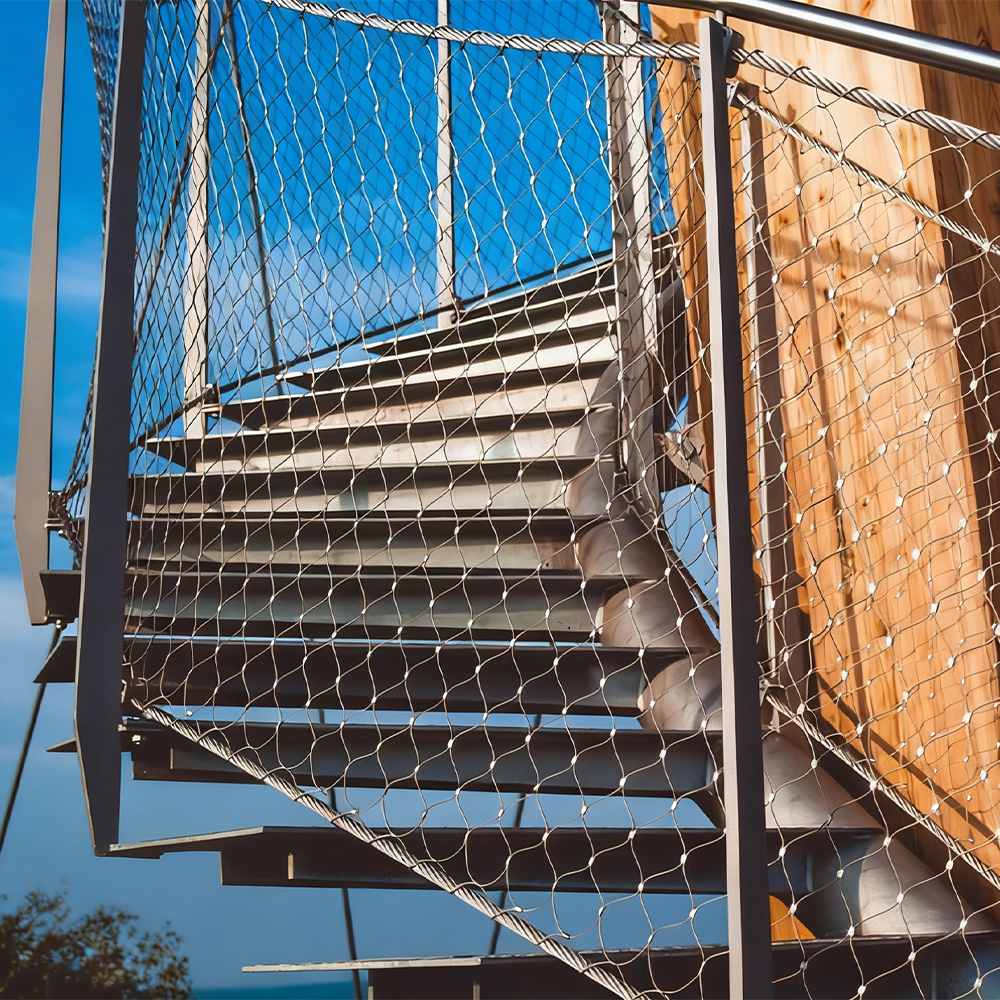

Bridge and staircase safety netting
Green wall and vertical garden support systems
Stadium and arena fall protection
Interior decorative partitions and ceilings
Highway and railway anti-throw screens
Playground and park safety barriers
Technical Specifications
| Cable Diameter | 1.0 mm – 3.0 mm |
| Mesh Opening | 20×20 mm – 80×80 mm (customizable) |
| Material | SS304, SS316, SS316L stainless steel |
| Construction | 7×7 or 7×19 wire rope |
| Surface Finish | Natural (untreated), polished |
| Breaking Load | 200 – 1200 kg (varies by cable diameter) |
| Temperature Range | -40°C to +400°C |
| Panel Size | Custom sizes up to 6×3 m |
| Standard | ASTM A240, EN 10088 |
