Gabion
Gabion Basket

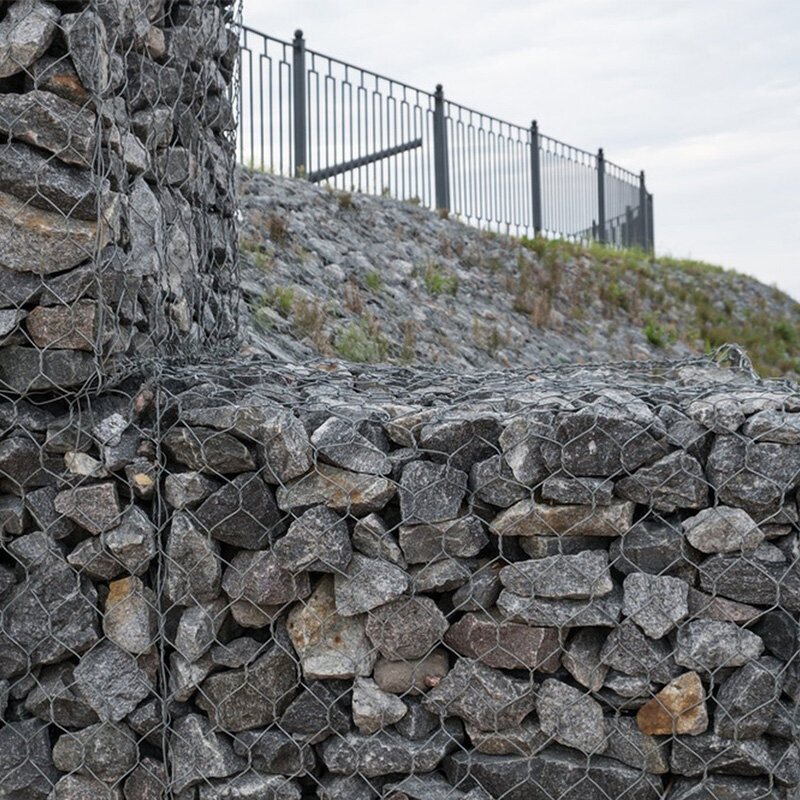

Our Double-Twisted Hexagonal Mesh Gabions are manufactured strictly in accordance with the ASTM A975 standard. Engineered for heavy-duty civil engineering, riverbank reinforcement, and marine coastal protection, these rock-filled wire mesh baskets offer unmatched flexibility, high tensile strength, and structural integrity for long-term erosion control.
Inquiry NowProduct Features
Strict Standard Alignment: 100% compliant with ASTM A975 mechanical and coating requirements, ensuring easy approval by project consultants and government engineers.
Excellent Structural Stability: Featuring a 1-meter (1m) interval diaphragm design and a strong spiral wire/lacing connection system to prevent rock shifting and deformities under heavy loads.
Premium Marine-Grade Coating: Available with advanced Zn-5Al-MM (Galfan) + 0.50mm PVC/Polymer coating, delivering a service life of up to 30 years in harsh seawater and tidal zones.
Flexible & Permeable: Allows natural water drainage to eliminate hydrostatic pressure while supporting green vegetation growth for ecological restoration.

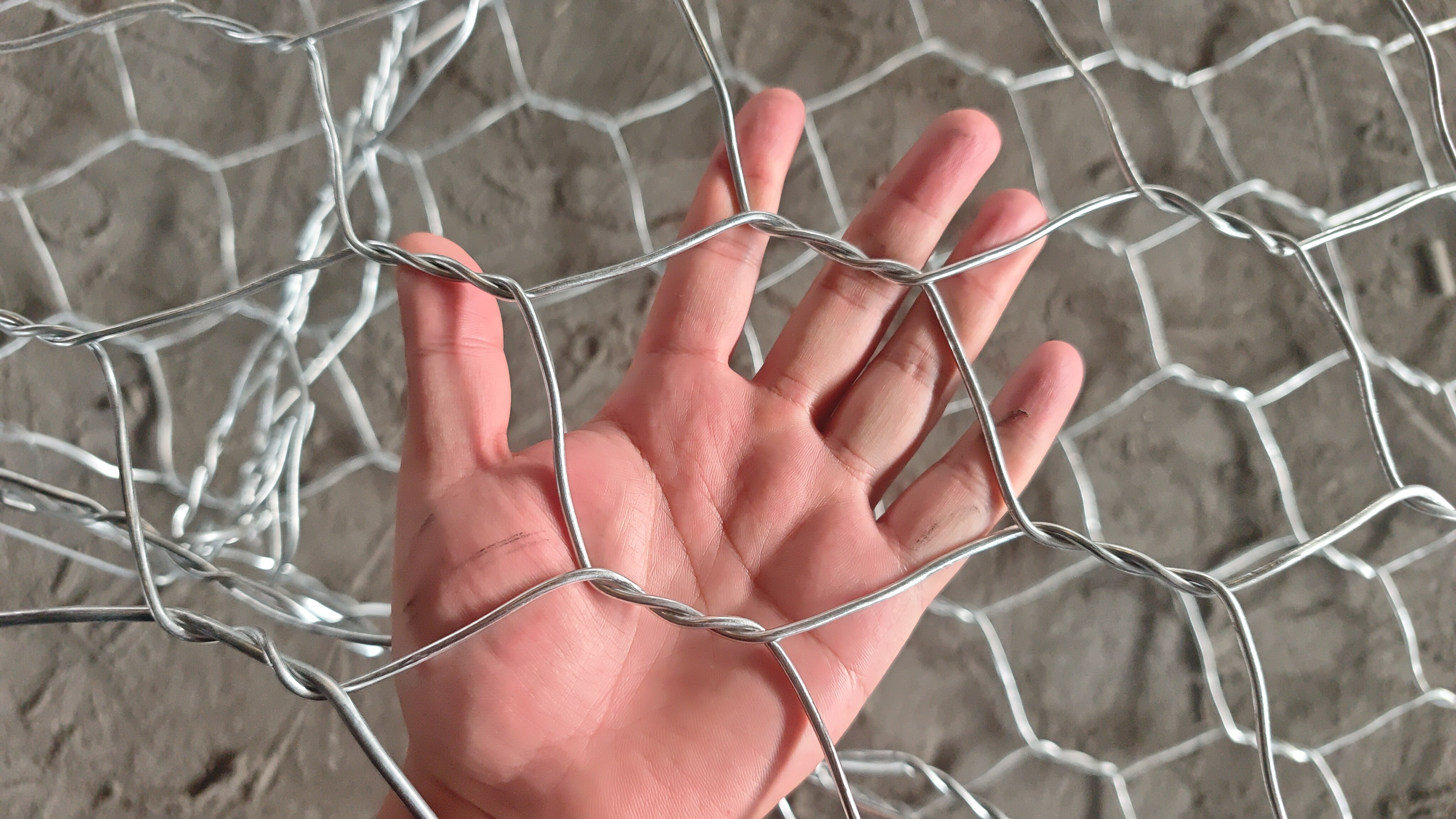

Double-twisted hexagonal mesh prevents unraveling if wire is cut
Flexible structure adapts to ground settlement without cracking
Environmentally friendly — vegetation can grow through the structure
Cost-effective compared to concrete retaining walls
Easy to install with minimal specialized equipment
Applications
River bank and shoreline erosion control
Retaining walls for roads and highways
Channel and canal lining
Bridge abutment protection
Marine coastal protection and seawall construction
Dam and reservoir protection
Coastal defense structures
Landscaping and architectural decoration
Technical Specifications
| Standard | ASTM A975 |
| Mesh Type | 8×10cm |
| Structure | Double-twisted hexagonal wire mesh with 1-meter internal partitions |
| Mesh Wire (Inner/Outer) | 3.05 mm (±0.10) — Galvanized/Galfan; 2.70 mm / 3.70 mm — Galfan+PVC |
| Selvedge Wire (Inner/Outer) | 3.80 mm (±0.12) — Galvanized/Galfan; 3.40 mm / 4.40 mm — Galfan+PVC |
| Lacing Wire (Inner/Outer) | 2.20 mm (±0.08) — Galvanized/Galfan; 2.20 mm / 3.20 mm — Galfan+PVC |
| Metallic Coating Weight | ≥250 g/m² (Zinc); ≥275 g/m² (Galfan); ≥275 g/m² (Galfan Core for PVC) |
| PVC Coating Thickness | N/A (Galvanized/Galfan); Nominal 0.50 mm (Galfan+PVC) |
| Tensile Strength (Base Steel) | 350~500 MPa |
| Mesh Tensile Strength | ≥51.1 kN/m (Galvanized/Galfan); ≥42.3 kN/m (Galfan+PVC) |
| Punch Test Resistance | ≥26.7 kN (Galvanized/Galfan); ≥23.6 kN (Galfan+PVC) |
| Anti-Corrosion Environment | Dry inland/standard riverbanks (Galvanized); High-velocity rivers/freshwater (Galfan); Marine/coastal/acidic-alkaline soils (Galfan+PVC) |
